Script and Grafana-dashboard to monitor battery status on Linux

2026/02/10

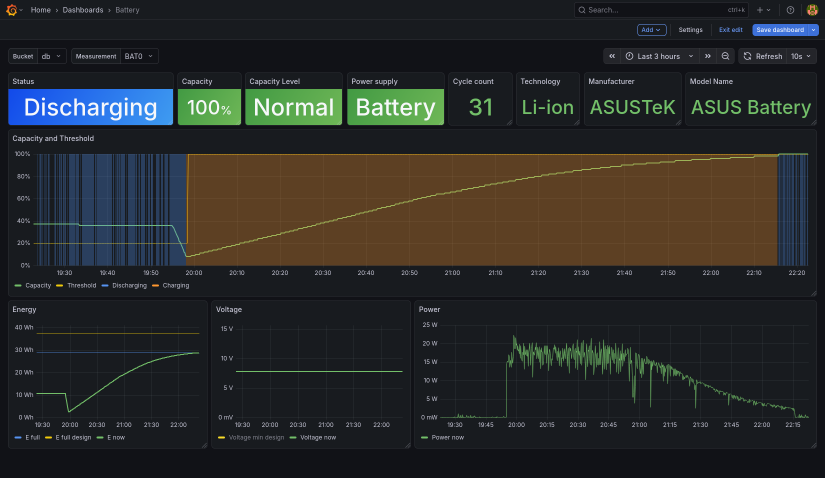

grafana-battery consists of a Python script that retrieves battery information from Linux sysfs (/sys/class/power_supply/<BAT>/) and outputs it using the InfluxDB Line Protocol, as well as a Grafana dashboard. The data collected by invoking the script through Telegraf's exec input plugin is stored in InfluxDB and can be visualized in Grafana.

Prerequisites

Linux (requires availability of /sys/class/power_supply/)
Python
InfluxDB v2
Telegraf
Grafana

Files

battery-status.py: retrieves battery information and outputs it in the InfluxDB Line Protocol
grafana-battery.json: Grafana dashboard
telegraf-battery.conf: Example configuration for Telegraf

Install

Configuration of Telegraf

Place the Python script

Copy battery-status.py to a location where Telegraf can execute it, then give it execute permission.
```
cp battery-monitor/battery-status.py /path/to/
chmod +x /path/to/battery-status.py
```
Configure Telegraf

Add the following to telegraf.conf (or an additional configuration file).
```
[[inputs.exec]]
  commands = [ "/path/to/battery-status.py" ]
  data_format = "influx"
```
If outputs.influxdb_v2 is not already configured, also add the following. Replace <INFLUXDB_TOKEN>, <ORG>, and <BUCKET> with appropriate values according to your environment.
```
[[outputs.influxdb_v2]]
  # urls = ["http://127.0.0.1:8086"]
  token = "<INFLUXDB_TOKEN>"
  organization = "<ORG>"
  bucket = "<BUCKET>"
```

Installing the Grafana Dashboard

Grafana → Dashboards → Import
Upload the file or paste the JSON
Set the bucket and measurement

Repository

https://github.com/TPKato/grafana-battery

License

GPL-3.0
